BELLEROPHON central battery ironclad (1, 1866)





Bellerophon

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Bellerophon     Chatham DYd 28.12.1863 26.4.1865 11.4.1866 guard ship 1892, TS 3.1904


Technical data


Displacement normal, t

7551

Displacement full, t
Length, m

91.4 pp

Breadth, m

17.1

Draught, m

7.52

No of shafts

1

Machinery

sails + 1 2-cyl HSE trunk, 8 rectangular boilers

Power, h. p.

6521

Max speed, kts

14.2

Fuel, t

coal 640

Endurance, nm(kts)

1500(8)

Armour, mm

iron; belt: 152 with 254mm teak backing, battery: 152 with 254mm teak backing, bulkheads: 127, CT: 203

Armament

10 x 1 - 229/14 MLR Mk IV, 5 x 1 - 178/16 MLR Mk III, 4 x 1 - 81/19 12pdr 8cwt BL (saluting)

Complement

650



Graphics

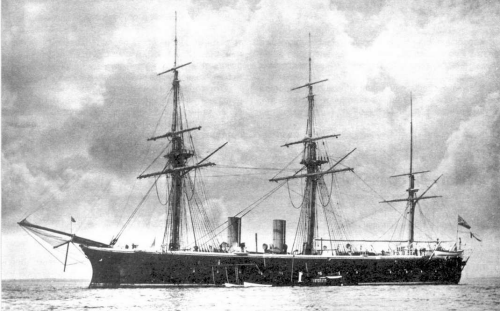

<i>Bellerophon</i>
Bellerophon


Project history

A major step forward in ironclad design, having increased engine power, protection and armament with improved hull design, manoeuvrability and seaworthiness. The hull was constructed on the bracket frame system with a complete double bottom for the first time, resulting in a substantial saving in weight. Some 200-300t of steel was also employed in the hull structure to save weight. The hull form was fuller than in earlier ships, with greater buoyancy fwd and aft. Ship was completed with an ordinary ram bow, but was very wet forward and a knee head was added to give a clipper-ram form. Ship handled well under steam, partly because she was the first RN ship having a balance rudder. Bellerophon was ship-rigged, sail area was 2210m2, but she did not handle well under sail.

229mm guns were installed in the central battery with 2 178mm guns at the fwd and aft ends of the main deck and 1 178mm gun on the aft end of the upper deck.

Ship protection

Full length belt from the main deck to 1.8m below the waterline was 152mm-thick amidships, reducing to 127mm before and abaft the battery, 76mm at the extreme bow and 114mm at extreme stern. The box battery on the main deck had 152mm sides and 127mm bulkheads. Chase guns at the fwd end of the main deck were protected by 114mm armour around the bow.

Modernizations

(1881-1884): was re-boilered, steam steering gear was fitted, ship was converted to barque rig and completely rearmed with 10 x 1 - 203/26 BL Mk III, 4 x 1 - 152/26 BL Mk III/IV/VI, 6 x 1 - 102/25 BL Mk I, 4 x 1 - 57/40 Hotchkiss QF Mk I, 12 x 1 - 11.4/87, 2 x 1 - 406 TC

Naval service

Sea-going service of Bellerophon ended in 1892, when she became a port guardship at Pembroke DYd. In 1904 she was converted to stokers` training ship at Plymouth and sold for BU 12.12.1922.
