AL WTAID patrol/supply vessel (2013)
Al Wtaid 2013
Ships
| Name | No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|
| الوتيد [Al Wtaid] | Dubai SB, Dubai | 3.2013 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1700 brt |
| Length, m | 60.0 |
| Breadth, m | 16.0 |
| Draught, m | 4.50 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516B diesels |
| Power, h. p. | 5225 |
| Max speed, kts | 13 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 27/63 MLG-27 |
| Electronic equipment | 2x Koden radars, 2x e/o directors |
| Complement |
Graphics

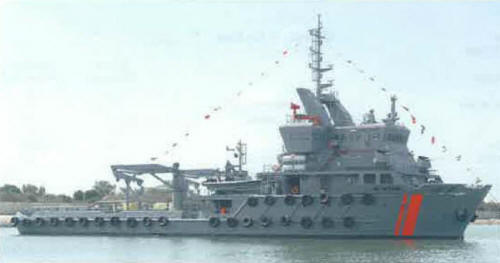

Al Wtaid 2013
Project history
Constructed as offshore supply vessel and completed for Coast Guard. Used as patrol ships and supply vessel for support of fast interceptors. Has 2 fast launches on davits, 10t and 5t cranes.
Modernizations
None.
Naval service
No significant events.
