No758 patrol boats (1986-1988)





No 758 1987

Ships


Names Builders Completed Losses Transfers Discarding

758 - 763, 2010- CG124 - 129

 Baglietto, Varazze, Italy: 758-763

1986: 758, 759

1987: 760, 761

1988: 762, 763

none

none

in service (2020): CG124 - 129


Technical data


Displacement standard, t

45
Displacement full, t48
Length, m

20.0 pp 23.0 oa
Breadth, m5.50
Draught, m1.17
No of shafts

2
Machinery

2 MTU 12V396 TB93 diesels
Power, h. p.3560
Max speed, kts40
Fuel, t

diesel oil
Endurance, nm(kts)700(20)
Armament

1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90
Electronic equipmentradar
Complement12


Graphics

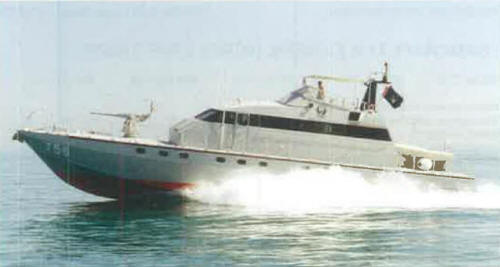

<i>No 758 </i>1987
No 758 1987


Project history

Coast Guard. Baglietto 23GC design, modified Meattini class.

Modernizations

None.

Naval service

No significant events.
