No1101 patrol boats (1999)
No 1101 1999
Ships
| Name | No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|
| 1101, 2010- CG101 | FBM Marine, Cowes, UK | 1999 | in service (2020) | |||
| 1102, 2010- CG102 | FBM Marine, Cowes, UK | 1999 | in service (2020) |
Technical data
| Displacement standard, t | 150 |
|---|---|
| Displacement full, t | 180 |
| Length, m | 33.0 |
| Breadth, m | 6.73 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TE94 diesels |
| Power, h. p. | 5900 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/90 Mk 20 Rh202, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca radar, Vigy e/o system |
| Complement | 14 |
Graphics

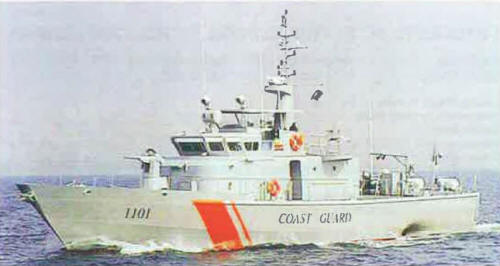

No 1101 1999
Project history
Coast Guard. FBM 'Protector' class (project LEWA-3). Aluminium hull. RIB is carried aft.
Modernizations
None.
Naval service
No significant events.
