Mubarraz 2000

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
مبارز [Mubarraz]	P4401, 2001- P141		Lürssen, Vegesack, West Germany		1989	8/1990	in service (2020)
مكاسب [Makasib]	P4402, 2001- P142		Lürssen, Vegesack, West Germany		1990	2/1991	in service (2020)

Technical data

Displacement standard, t	225
Displacement full, t	260
Length, m	41.5 pp 44.9 oa
Breadth, m	7.00
Draught, m	2.40 propellers
No of shafts	2
Machinery	2 MTU 20V538 TB92 diesels
Power, h. p.	10200
Max speed, kts	33
Fuel, t	diesel oil
Endurance, nm(kts)	1600(16)
Armament	2 x 2 MM40 Exocet SSM (4 MM40 Block II), 1 x 6 Sadral SAM (6 Mistral), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 Mk 20 Rh202
Electronic equipment	Decca TM1226, Sea Giraffe 50HC, 9LV223 radars, Najir e/o system, Cutlass RDL-2, Cygnus ECM suites, Dagaie decoy RL
Complement	40

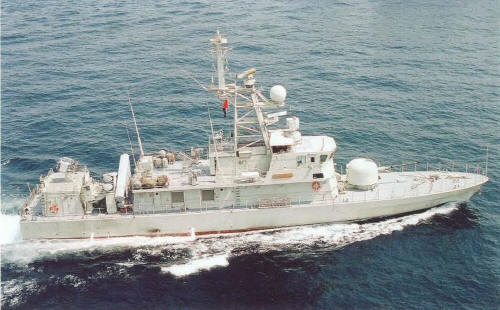

Graphics

Project history

Lürssen 'FPB38' design, ordered in 1986 simultaneously with two 'FPB62' corvettes.

Modernizations

2006, both: - Decca TM1226 radar; + Scout radar

2010, both: - 2 x 2 MM40 Exocet SSM; + 2 x 2 MM40 Exocet SSM (4 MM40 Block III)

Naval service

No significant events.
