L65 logistics landing craft (2003-2004)
Zarkoh 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| L65 | ADSB, Massafah, Abu Dhabi | 2003 | in service (2020) | ||||
| L66 | ADSB, Massafah, Abu Dhabi | 2004 | in service (2020) | ||||
| زرقه [Zarkoh] | L67 | ADSB, Massafah, Abu Dhabi | 2004 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 850 |
| Length, m | 55.0 pp 64.0 oa |
| Breadth, m | 12.0 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3508 diesels |
| Power, h. p. | 1810 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000 |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 240 t cargo, 56 troops |
| Electronic equipment | Simrad RA-53C radar |
| Complement | 19 |
Graphics

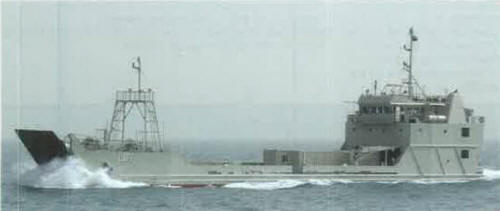

Zarkoh 2008
Project history
Bow ramp (6.4m length, 60t capacity), 7.5t crane. Modification of L61 design
Modernizations
2012, Zarkoh: + helicopter deck
Naval service
No significant events.
