L41 logistics landing craft (2005-2006)
Umm Al Narr 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| L41 | ADSB, Massafah, Abu Dhabi | 2005 | in service (2020) | ||||
| أم النار [Umm Al Narr] | L42 | ADSB, Massafah, Abu Dhabi | 21.6.2006 | in service (2020) |
Technical data
| Displacement standard, t | 380 |
|---|---|
| Displacement full, t | ~500 |
| Length, m | 44.4 |
| Breadth, m | 10.0 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3406TA diesels |
| Power, h. p. | 730 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(8.5) |
| Armament | none |
| Military load | 300 t cargo, 40 troops |
| Electronic equipment | radar |
| Complement | 11 |
Standard scale images
L41 2010
Graphics

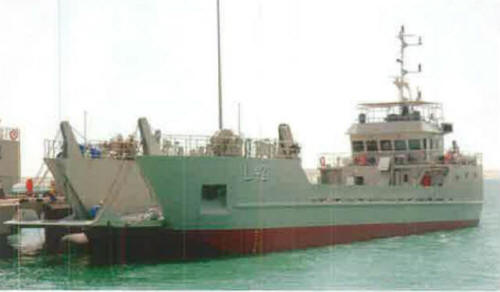

Umm Al Narr 2006
Project history
Can carry mines. One 13t crane. Umm Al Narr is used by UAE Special Forces Command.
Modernizations
2012, Zarkoh: + helicopter deck
Naval service
No significant events.
