L21 landing and supply craft (2007)
L21 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L21-24 |
ADSB, Massafah, Abu Dhabi: L21-24 |
2007: L21-24 |
none |
none |
in service (2020): L21-24 |
Technical data
| Displacement standard, t | 53 |
|---|---|
| Displacement full, t | 73 |
| Length, m | 23.5 pp 26.0 oa |
| Breadth, m | 5.40 |
| Draught, m | 1.30 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V2000 M90 diesels |
| Power, h. p. | 2720 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300 |
| Armament | 1 x 1 - 12.7/90 |
| Military load | 18 troops, 2 3m conatiners or 1 vehicle |
| Electronic equipment | radar |
| Complement | 3 |
Graphics

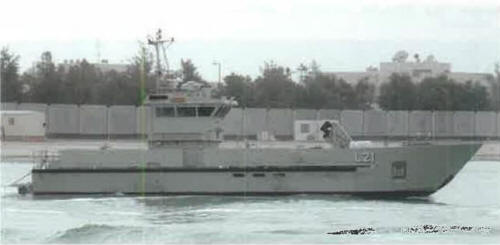

L21 2011
Project history
Fast supply vessels ordered in 2004. Aluminium craft built to a Swede Ship Marine design. Bow door.
Modernizations
None.
Naval service
No significant events.
