AL FEYI logistics landing craft (1987-1988)
Dayyinah 1996
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ألفي [Al Feyi] | L5401, 2002- L51 | Siong Huat, Singapore | 17.4.1987 | 4.8.1987 | in service (2020) | ||
| دينه [Dayyinah] | L5402, 2002- L52 | Argos, Singapore | 14.10.1988 | 12/1988 | in service (2020) | ||
| جنانه [Jananah] | L5403, 2002- L53 | Argos, Singapore | 14.10.1988 | 12/1988 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 650 |
| Length, m | 47.0 pp 50.0 oa |
| Breadth, m | 11.0 |
| Draught, m | 2.75 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 1250 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(11) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 4 tanks |
| Electronic equipment | BR100-056 radar |
| Complement | 10 |
Graphics

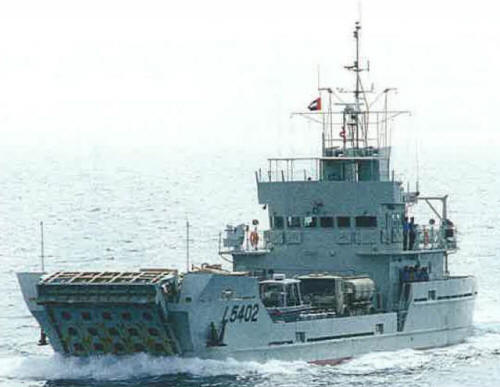

Dayyinah 1996
Project history
Have a large crane. Can also transport fuel and water cargo.
Modernizations
None.
Naval service
No significant events.
