EDERMEN corvettes (2011)
Edermen 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Edermen | 828, later- 121 | 217 | Sredne-Nevskiy SSZ, Pontonnyy, Russia | 3/2009 | 8/2010 | 9/2011 | in service (2020) |
| Gayratly | 829, later- 124 | 218 | Sredne-Nevskiy SSZ, Pontonnyy, Russia | 7/2009 | 5/2011 | 26.9.2011 | in service (2020) |
Technical data
| Displacement standard, t | 480 |
|---|---|
| Displacement full, t | 550 |
| Length, m | 52.5 pp 59.9 oa |
| Breadth, m | 11.5 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | CODAG: 2 UGT6000 gas turbines + 2 M-504 diesels |
| Power, h. p. | 24000+10000=34000 |
| Max speed, kts | 38 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 2400(14) |
| Armament | 4 x 4 Uran SSM (16 3M24EM6), 1 x 4 Igla-1 SAM (12 9K38), 1 x 1 - 76/59 AK-176, 2 x 6 - 30/54 AK-630 |
| Electronic equipment | Kivach-2, Garpun, MR-123 Vympel radars, 4x PK-10 decoy RL |
| Complement | 39 |
Graphics

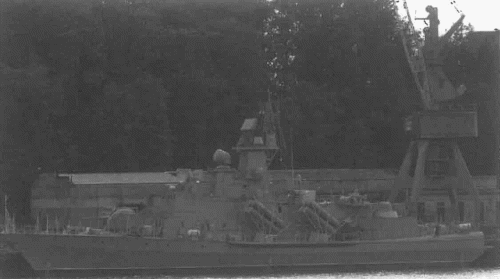

Edermen 2011
Project history
Fast attack craft of Russian export project 12418. Ordered in 2008.
Modernizations
None.
Naval service
No significant events.
