SG121 fast attack craft (missile) (2015-2017)
Dearsan 33 design
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| SG121 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 7/2014 | 10.10.2015 | 2015 | in service (2020) | ||
| SG122 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2015 | in service (2020) | ||||
| Galjaň | SG123 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 27.5.2016 | 2016 | in service (2020) | ||
| SG124 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2016 | in service (2020) | ||||
| SG125 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2017 | in service (2020) | ||||
| SG126 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2017 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 33.1 |
| Breadth, m | 7.10 |
| Draught, m | 1.40 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V M93L diesels |
| Power, h. p. | 6920 |
| Max speed, kts | 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 350(35) |
| Armament | 2 x 1 Marte Mk 2.N SSM (2 Marte Mk 2.N), 1 x 1 - 25/92 STOP |
| Electronic equipment | radar, ASELFLIR e/o system |
| Complement |
Graphics

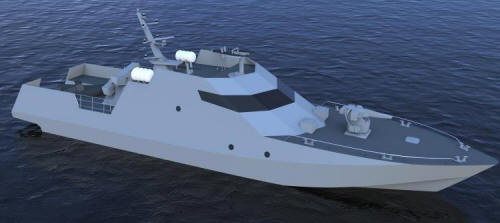

Dearsan 33 design
Project history
Coast Guard. Dearsan 33 design. Ordered in 2015.
Modernizations
None.
Naval service
No significant events.
