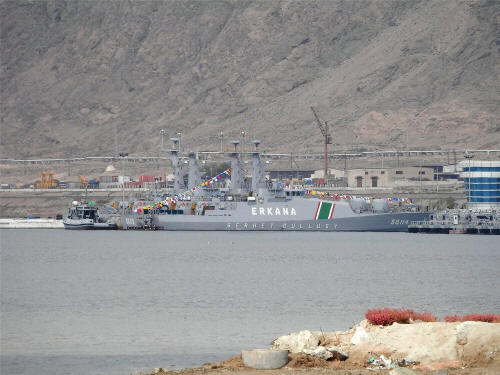

Erkana 2013

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Arkadag	101, later- SG111		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2012	in service (2020)
Barkarar	102, later- SG112		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2012	in service (2020)
Merdana	SG113		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2013	in service (2020)
Erkana	SG114		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			4/2013	in service (2020)
	SG115		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2014	in service (2020)
Mergen	SG116		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2014	in service (2020)
Kusgar	SG117		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2015	in service (2020)
	SG118		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2015	in service (2020)
Nayza	SG119		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2015	in service (2020)
	SG120		Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi			2015	in service (2020)

Technical data

Displacement standard, t
Displacement full, t	400
Length, m	55.8
Breadth, m	8.85
Draught, m	2.50
No of shafts	2
Machinery	2 MTU 16V4000 M90 diesels
Power, h. p.	7400
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	2000(12)
Armament	1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 25/92 STOP, 2 x 6 ASRLS ASWRL, 1 DCT
Electronic equipment	Scout/Variant 2D radar, ASELFLIR e/o system, SP-92 Mk 2 sonar, Genesis CCS
Complement	34

Graphics

Project history

Coast Guard. Dearsan P1200 design. Ships were built in sections in Istanbul and assembled and outfitted at Turkmenbashi.

Modernizations

2016-2018, all: + 2 x 2 SIMBAD-RC SAM (12 Mistral 2)

Naval service

No significant events.
