No115 patrol boats (2004-2006)
2013
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
115, 116 2 more units |
More, Feodosiya, Ukraine: 115, 116, 2 more units |
2004: 115, 116 2006: 2 more units |
none |
none |
in service (2020): 115, 116, 2 more units |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 40 |
| Length, m | 25.3 |
| Breadth, m | 5.10 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V2000 M90 diesels |
| Power, h. p. | 2700 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(15) |
| Armament | 1 x 2 - 12.7/79 |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

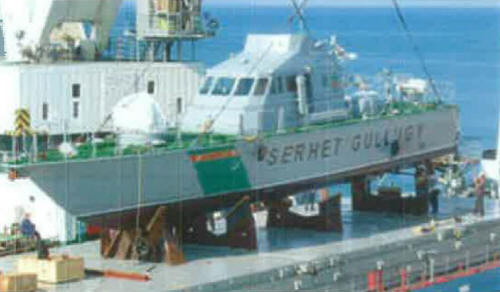

2013
Project history
Coast Guard. Ukrainian design Grif-T (FC26), modified Soviet project 1400. Aluminum construction.
Modernizations
None.
Naval service
No significant events.
