Amasra 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Alanya	M265		Abeking & Rasmussen, Lemwerder, Germany	6.11.2000	21.3.2003	26.7.2005	in service (2019)

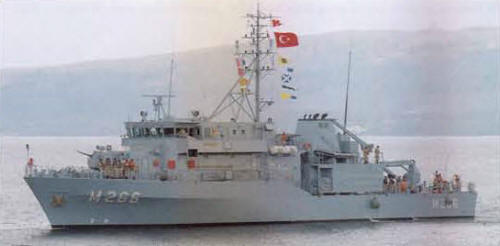

Amasra	M266		Taşkizak NSY, Istanbul	25.7.2001	10.5.2004	26.7.2005	in service (2019)
Ayvalık	M267		Taşkizak NSY, Istanbul	25.7.2002	26.7.2005	22.6.2007	in service (2019)
Akçakoca	M268		Taşkizak NSY, Istanbul	24.7.2003	27.9.2006	17.9.2007	in service (2019)
Anamur	M269		Taşkizak NSY, Istanbul	1.9.2004	17.9.2007	10.10.2008	in service (2019)
Akçay	M270		Taşkizak NSY, Istanbul	26.7.2005	27.9.2008	15.12.2009	in service (2019)

Technical data

Displacement standard, t	500
Displacement full, t	715
Length, m	51.0 pp 54.5 oa
Breadth, m	9.5 wl 9.70 oa
Draught, m	2.60 hull 3.20 propellers
No of shafts	2 Voith-Schneider cycloidal propellers
Machinery	2 MTU 8V396 TE84K diesels
Power, h. p.	3000
Max speed, kts	14
Fuel, t	diesel oil
Endurance, nm(kts)	2400(10)
Armament	1 x 1 - 30/82 OTO-Breda 563-0005, 2 x 1 - 12.7/90, 60 mines, 2x PAP-104 Mk 5 USV, Oropesa mechanical minesweeping gear, decompression chamber, 4 divers
Electronic equipment	type 1007 radar, MFCS e/o system, type 2093 sonar, DR2000 ECM suite, Nautis 3 CCS
Complement	53

Standard scale images

Graphics

Project history

Lürssen Werft/Abeking & Rasmussen design, a variant of the German Navy's Type 332, was selected in 1999. Nonmagnetic steel-hull construction. Shock mountings are provided for virtually every piece of equipment and for all crew seats. A Haux portable divers' decompression chamber is also carried.

Modernizations

None.

Naval service

No significant events.
