Gelibolu 1984

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Gazi Osman Paşa (ex-Karlsruhe), 1983- Gelibolu	D360		Stülcken, Hamburg, West Germany	15.12.1958	24.10.1959	15.12.1962 // 28.3.1982	fire 1.1994, stricken 1.1995
Gemlik (ex-Emden)	D361		Stülcken, Hamburg, West Germany	15.4.1958	21.3.1959	24.10.1961 // 23.9.1983	stricken 1992
Gemlik (ex-Braunschweig)	D361		Stülcken, Hamburg, West Germany	28.7.1960	3.2.1962	16.6.1964 // 1992	stricken 6.1994

Technical data

Displacement standard, t	2425
Displacement full, t	2970
Length, m	105.0 wl 109.8 oa
Breadth, m	11.0
Draught, m	4.61
No of shafts	2
Machinery	CODAG: 4 MAN V84V24/30 diesels + 2 Brown Boveri TA8007 gas turbines
Power, h. p.	12000 + 26000 = 38000
Max speed, kts	30
Fuel, t	diesel / gas turbine oil 361
Endurance, nm(kts)	2900(22)
Armament	2 x 1 - 100/55 Mle 1953, 2 x 2 - 40/70 Breda-Bofors 106, 2 x 1 - 40/70 Breda-Bofors 107, 4 x 1 - 533 TT, 2 x 4 - 375 Bofors ASWRL, 2 DCR(12), 82 mines
Electronic equipment	DA-02, SGR-103, Kelvin Hughes 14/9, 2x M44, M45 radars, PAE/CWE sonar, ECM suite, 2x decoy RL
Complement	210

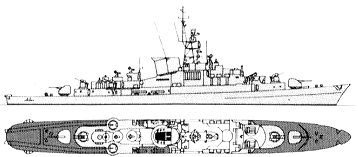

Standard scale images

Graphics

Project history

Former Type 120 frigates of Bundesmarine. Also Lübeck in December 1988 and Braunschweig in July 1989 were transferred for spares but later ex-Braunschweig replaced ex-Emden as Gemlik.

Modernizations

None.

Naval service

Gelibolu was badly damaged by fire in 1984 and later scrapped.
