BOZCAADA corvettes (1976-1979/2001-2002)

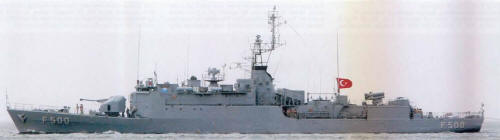

Bozcaada 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Bozcaada (ex-Commandant de Pimodan) | F500 | Arsenal de Lorient, France | 1.9.1975 | 7.8.1976 | 20.5.1978 // 22.6.2001 | in service (2019) | |
| Bodrum (ex-Drogou) | F501 | Arsenal de Lorient, France | 1.10.1973 | 30.11.1974 | 30.9.1976 // 18.10.2001 | in service (2019) | |
| Bandırma (ex-Quartier-Maître Anquetil) | F502 | Arsenal de Lorient, France | 1.8.1975 | 7.8.1976 | 15.6.1979 // 14.12.2001 | in service (2019) | |
| Beykoz (ex-D'Estienne d'Orves) | F503 | Arsenal de Lorient, France | 1.9.1972 | 1.6.1973 | 10.9.1976 // 18.3.2002 | in service (2019) | |
| Bartın (ex-Amyot d'Inville) | F504 | Arsenal de Lorient, France | 1.9.1973 | 30.11.1974 | 13.10.1976 // 3.6.2002 | in service (2019) | |
| Bafra (ex-Second-Maître Le Bihan) | F505 | Arsenal de Lorient, France | 1.11.1976 | 13.8.1977 | 11.7.1979 // 26.6.2002 | in service (2019) |
Technical data
| Displacement standard, t | 1100 |
|---|---|
| Displacement full, t | 1250 |
| Length, m | 76.0 pp 80.5 oa |
| Breadth, m | 10.3 |
| Draught, m | 3.00 hull 5.30 over sonar |
| No of shafts | 2 |
| Machinery | 2 SEMT-Pielstick 12PC2 V400 diesels |
| Power, h. p. | 12000 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(15) |
| Armament | 2 x 1 MM38 Exocet SSM (2 MM38), 1 x 1 - 100/55 Mle 1968, 2 x 1 - 20/70 Mk 10 Mod. 23, 4 x 1 - 12.7/90, 4 - 550 TC (4 L-5), 1 x 4 - 375 Mle 1972 F1 ASWRL |
| Electronic equipment | DRBN-34, DRBV-51A, DRBC-32E radars, DUBA-25 sonar, ARBR-16 ECM suite, 2x Dagaie decoy RL, SLQ-25 Nixie torpedo decoy |
| Complement | 90 |
Standard scale images
Bozcaada 2010
Graphics
Bozcaada 2008
Project history
Former French D'Estienne d'Orves class corvettes.
Modernizations
None.
Naval service
No significant events.
