Kemalreis 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Barbaros	F244		Blohm & Voss, Hamburg, Germany	18.3.1993	29.9.1993	18.3.1995	in service (2019)
Oruçreis	F245		Gölçuk NSY, Kocaeli, Izmir	15.9.1993	28.7.1994	10.5.1996	in service (2019)
Salihreis	F246		Blohm & Voss, Hamburg, Germany	24.7.1995	26.9.1997	17.12.1998	in service (2019)

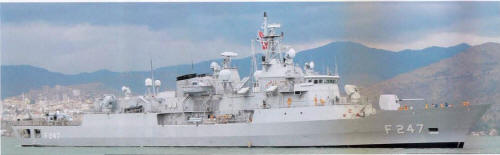

Kemalreis	F247		Gölçuk NSY, Kocaeli, Izmir	3.12.1996	24.7.1998	8.6.2000	in service (2019)

Technical data

Displacement standard, t	F244, 245: 3100 F246, 247: 3150
Displacement full, t	F244, 245: 3350 F246, 247: 3400
Length, m	F244, 245: 107.2 pp 116.7 oa F246, 247: 108.2 pp 117.7 oa
Breadth, m	13.8 wl 14.8 oa
Draught, m	4.25 hull 6.12 max
No of shafts	2
Machinery	CODOG: 2 General Electric LM-2500 gas turbines / 2 MTU 16V1163 TB83 diesels
Power, h. p.	60000 / 11800
Max speed, kts	32
Fuel, t	diesel / gas turbine oil 300
Endurance, nm(kts)	4100(18)
Armament	F244, 245: 2 x 4 Harpoon SSM (8 RGM-84C), 1 x 8 Sea Sparrow SAM (24 RIM-7M), 1 x 1 - 127/54 Mk 45 Mod.2A, 3 x 4 - 25/92 Sea Zenith GM25-52, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 Mod.5 TT (Mk 46 Mod.5), 1 helicopter (AB-212) F246, 247: 2 x 4 Harpoon SSM (8 RGM-84C), 1 x 16 Sea Sparrow SAM (VLS, 16 Aspide), 1 x 1 - 127/54 Mk 45 Mod.2A, 3 x 4 - 25/92 Sea Zenith GM25-52, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 Mod.5 TT (Mk 46 Mod.5), 1 helicopter (SH-60B)
Electronic equipment	F244, 245: Decca 2136, AWS-9, Dolphin AWS-6, WM-25, STIR-1.8, TMX, 2x TMK radars, Albis e/o system, SQS-56 sonar, Cutlass B1, Scorpion B ECM suites, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, TACTICOS-STACOS FD CCS F246, 247: Decca 2136, AWS-9, Dolphin AWS-6, WM-25, 2x STIR-1.8, 2x TMK radars, Albis e/o system, SQS-56 sonar, Cutlass B1, Scorpion B ECM suites, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, TACTICOS-STACOS FD CCS
Complement	200

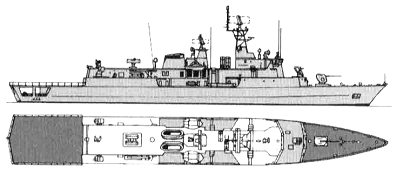

Standard scale images

Graphics

Project history

First two (MEKO 200TN Track IIA) of planned four ordered in 1990, contract of the second pair of the MEKO 200TN Track IIB design was signed in 1994. The German subsidy for the construction of the second pair was suspended from March to September 1995 because of Turkey's intervention against Kurdish elements in northern Iraq. Two more were on option, to be built one each in Turkey and Germany, but they were canceled in October 1999.

Modernizations

2012-2014, Barbaros, Salihreis, Kemalreis: - Decca 2136, AWS-9 radars; + 20V90, SMART-S Mk 2 radars

Naval service

No significant events.
