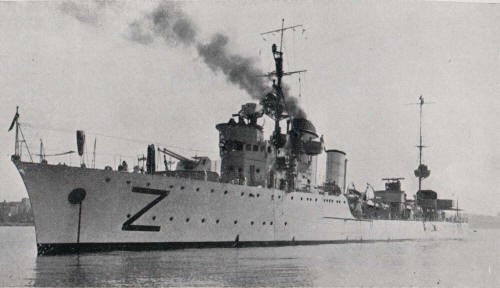

Zafer 1933

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Zafer			CT, Riva Trigoso, Italy	1.1930	20.9.1931	6.1932	stricken 2.1954
Tinaztepe			CT, Riva Trigoso, Italy	1.1930	27.7.1931	6.1932	stricken 2.1954

Technical data

Displacement standard, t	1206
Displacement full, t	1610
Length, m	93.6 pp 96.0 oa
Breadth, m	9.30
Draught, m	3.28
No of shafts	2
Machinery	2 sets Parsons geared steam turbines, 3 Thornycroft boilers
Power, h. p.	35000
Max speed, kts	36
Fuel, t	oil 350
Endurance, nm(kts)	3500(15)
Armament	2 x 2 - 120/50 Ansaldo 1926, 2 x 1 - 40/39 Vickers-Terni 1917, 2 x 3 - 533 TT
Complement	149

Standard scale images

Graphics

Project history

Built under the 1929 programme in Italy. Design was developed on base of Italian destroyer Folgore, being her slightly moderated version. External changes were minimum, the most significant one was number of funnels (two instead of one). Moderate requirements of customer concerning speed have allowed to lower machinery power on 20%.

Modernizations

1942, both: + 2 x 1 - 20/70 Oerlikon Mk II/IV, 4 DCT

Naval service

No significant events.
