TUZLA patrol craft (2011-2015)

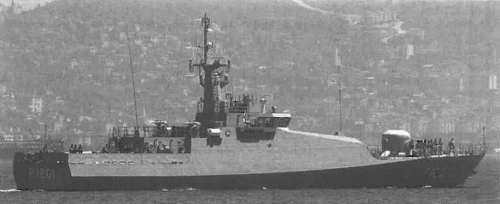

Karaburun 2011

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Tuzla P1200   Dearsan, Tuzla   9.4.2010 4.1.2011 in service (2019)
Karaburun P1201   Dearsan, Tuzla   16.7.2010 23.5.2011 in service (2019)
Köyceğiz P1202   Dearsan, Tuzla   11.9.2010 12.8.2011 in service (2019)
Kumkale P1203   Dearsan, Tuzla   17.3.2011 24.11.2011 in service (2019)
Tarsus P1204   Dearsan, Tuzla   7.6.2011 28.4.2012 in service (2019)
Karabiga P1205   Dearsan, Tuzla   27.9.2011 15.6.2012 in service (2019)
Karşıyaka P1206   Dearsan, Tuzla   1.12.2011 7.9.2012 in service (2019)
Tekirdağ P1207   Dearsan, Tuzla   22.2.2012 4.1.2013 in service (2019)
Kaş P1208   Dearsan, Tuzla   30.5.2012 3.5.2013 in service (2019)
Kilimli P1209   Dearsan, Tuzla   8.9.2012 13.8.2013 in service (2019)
Türkeli P1210   Dearsan, Tuzla   8.1.2013 5.11.2013 in service (2019)
Kdz. Taşucu P1211   Dearsan, Tuzla   25.4.2013 11.3.2014 in service (2019)
Karataş P1212   Dearsan, Tuzla   17.9.2013 1.7.2014 in service (2019)
Karpaz P1213   Dearsan, Tuzla   4.12.2013 3.10.2014 in service (2019)
Kdz. Ereğli P1214   Dearsan, Tuzla   11.3.2014 7.11.2014 in service (2019)
Kuşadası P1215   Dearsan, Tuzla   14.5.2014 18.2.2015 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Tuzla P1200   Dearsan, Tuzla   9.4.2010 4.1.2011 in service (2019) Karaburun P1201   Dearsan, Tuzla   16.7.2010 23.5.2011 in service (2019) Köyceğiz P1202   Dearsan, Tuzla   11.9.2010 12.8.2011 in service (2019) Kumkale P1203   Dearsan, Tuzla   17.3.2011 24.11.2011 in service (2019) Tarsus P1204   Dearsan, Tuzla   7.6.2011 28.4.2012 in service (2019) Karabiga P1205   Dearsan, Tuzla   27.9.2011 15.6.2012 in service (2019) Karşıyaka P1206   Dearsan, Tuzla   1.12.2011 7.9.2012 in service (2019) Tekirdağ P1207   Dearsan, Tuzla   22.2.2012 4.1.2013 in service (2019) Kaş P1208   Dearsan, Tuzla   30.5.2012 3.5.2013 in service (2019) Kilimli P1209   Dearsan, Tuzla   8.9.2012 13.8.2013 in service (2019) Türkeli P1210   Dearsan, Tuzla   8.1.2013 5.11.2013 in service (2019) Kdz. Taşucu P1211   Dearsan, Tuzla   25.4.2013 11.3.2014 in service (2019) Karataş P1212   Dearsan, Tuzla   17.9.2013 1.7.2014 in service (2019) Karpaz P1213   Dearsan, Tuzla   4.12.2013 3.10.2014 in service (2019) Kdz. Ereğli P1214   Dearsan, Tuzla   11.3.2014 7.11.2014 in service (2019) Kuşadası P1215   Dearsan, Tuzla   14.5.2014 18.2.2015 in service (2019)

Technical data


Displacement standard, t
Displacement full, t

400

Length, m

55.8

Breadth, m

8.85

Draught, m

2.50

No of shafts

2

Machinery

2 MTU 16V4000 M90 diesels

Power, h. p.

7400

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)

2000(12)

Armament

1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90, 1 x 4 ASRLS ASWRL, 2 DCT

Electronic equipment

nav. radar, AselFLIR 300D e/o system, SP-92 Mk 2 sonar, Genesis CCS

Complement

34



Standard scale images


<i>Tuzla </i>2015
Tuzla 2015


Graphics


<i>Karaburun </i> 2011
Karaburun 2011


Project history

Ordered in 2007; represents the largest warship construction project given to a private Turkish shipyard to date. Domestic design incorporates numerous signature reduction measures including low acoustic, radar, and infrared signatures. Intended to conduct coastal patrol and antisubmarine surveillance in local waters. Strong sea-keeping qualities allow for operations in up to Sea State 5 conditions. Steel construction.

Modernizations

None.

Naval service

No significant events.
