GİRNE fast patrol craft (1976)





Girne 1978

Ships


Name No Yad No Builder Laid down Launched Comp Fate
Girne P140   Taşkizak NSY, Istanbul     30.7.1976 stricken 11.2000


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yad No Builder Laid down Launched Comp Fate Girne P140   Taşkizak NSY, Istanbul     30.7.1976 stricken 11.2000

Technical data


Displacement standard, t

341

Displacement full, t

399

Length, m

54.4 pp 58.1 oa

Breadth, m

7.60

Draught, m

2.80

No of shafts

2

Machinery

2 MTU 16V956 TB91 diesels

Power, h. p.

9000

Max speed, kts

29.5

Fuel, t

diesel oil

Endurance, nm(kts)4200(16)
Armament

1 x 2 - 40/60 Mk 3, 1 x 1 - 40/60 Mk 7, 2 x 1 - 12.7/90, 4 x 4 Mk 20 Mousetrap Mk 20 ASWRL, 2 Mk 6 DCT, 2 Mk 9 DCR (18)

Electronic equipment2x Decca TM1226 radars, Naja e/o system, PMS26 sonar
Complement

30



Standard scale images


similar <i>Lazaga </i>1990
similar Lazaga 1990


Graphics

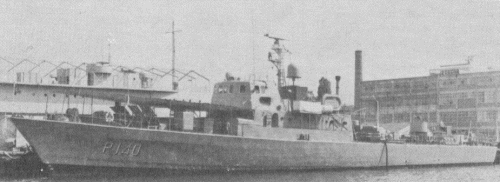

<i>Girne </i>1978
Girne 1978


Project history

German PB 57 class, as Spanish Lazaga but with lighter armament.

Modernizations

1982: - 1 x 2 - 40/60; + 1 x 1 - 40/60 Mk 7

1988: - Decca TM1226 radar

Naval service

No significant events.
