AB21 patrol boats (1967-1968)





AB24 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
AB21 P1221, 1991- P121   Peterson, Sturgeon Bay, USA   4.5.1967 8.1967 in service (2019)
AB22 P1222, 1991- P122   Peterson, Sturgeon Bay, USA   25.5.1967 9.1967 in service (2019)
AB23 P1223, 1991- P123   Peterson, Sturgeon Bay, USA   7.7.1967 10.1967 in service (2019)
AB24 P1224, 1991- P124   Peterson, Sturgeon Bay, USA   14.9.1967 5.1968 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate AB21 P1221, 1991- P121   Peterson, Sturgeon Bay, USA   4.5.1967 8.1967 in service (2019) AB22 P1222, 1991- P122   Peterson, Sturgeon Bay, USA   25.5.1967 9.1967 in service (2019) AB23 P1223, 1991- P123   Peterson, Sturgeon Bay, USA   7.7.1967 10.1967 in service (2019) AB24 P1224, 1991- P124   Peterson, Sturgeon Bay, USA   14.9.1967 5.1968 in service (2019)

Technical data


Displacement standard, t104
Displacement full, t144
Length, m

30.8

Breadth, m

6.45

Draught, m

1.83

No of shafts

2

Machinery

8 General Motors Detroit Diesel 6-71 diesels

Power, h. p.

2040

Max speed, kts

17

Fuel, t

diesel oil 16

Endurance, nm(kts)1000(12)
Armament

1 x 1 - 40/60 Mk 3, 2 x 2 - 20/70 Mk 24, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCR (4)

Electronic equipmentRaytheon 1500B radar, SQS-17A sonar
Complement30


Standard scale images


<i>AB21 </i>1970
AB21 1970


Graphics

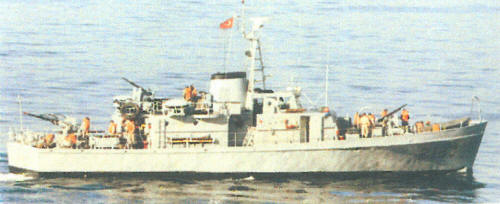

<i>AB23 </i>2001
AB23 2001

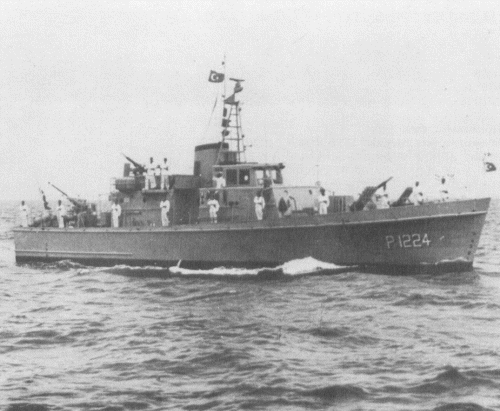

<i>AB24 </i>1979
AB24 1979


Project history

PGM71 type patrol boats built in the USA for Turkey.

Modernizations

None.

Naval service

No significant events.
