JUGURTHA patrol ships (2018-2019)
Jugurtha 2018
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| جغرثا [Jugurtha] | P610 | Damen, Galati, Romania | 13.12.2016 | 5.3.2018 | in service (2019) | ||
| سيفكس [Siphax] | P611 | Damen, Galati, Romania | 13.12.2016 | 2.5.2018 | in service (2019) | ||
| حنون [Hannon] | P612 | Damen, Galati, Romania | 27.7.2018 | in service (2019) | |||
| سفنيصب [Sophonisbe] | P613 | Damen, Galati, Romania | 2019 | in service (2019) |
Technical data
| Displacement standard, t | 1284 |
|---|---|
| Displacement full, t | 1877 |
| Length, m | 75.0 |
| Breadth, m | 12.7 |
| Draught, m | 3.75 |
| No of shafts | 2 |
| Machinery | 4 Caterpillar diesels |
| Power, h. p. | 9600 |
| Max speed, kts | 20.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | 2x nav. radars |
| Complement | 35 |
Graphics

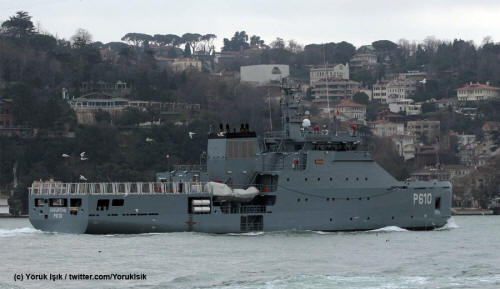

Jugurtha 2018

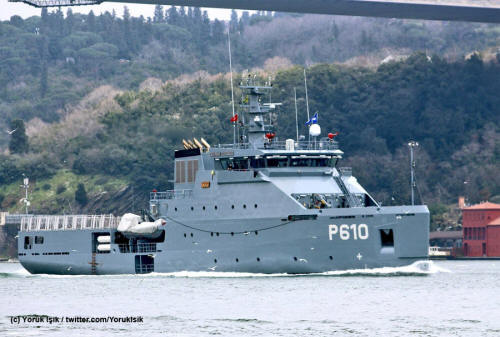

Jugurtha 2018
Project history
Damen MSOPV 1400 design (Multi-Service Offshore Patrol Vessel, 1400t). Sea Axe bow form. Multi-mission bay under the helicopter deck may contain 9m RHIB, launched on the way via the ramp or small helicopter. Small hangar on the helicopter deck level in the superstructure can accommodate small helicopter or UAV.
Modernizations
None.
Naval service
No significant events.
