GN3501 patrol boats (2012-2013)
GN3502 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| GN3501 | CN Vittoria, Adria | 28.12.2012 | in service (2019) | ||||
| GN3502 | CN Vittoria, Adria | 28.12.2012 | in service (2019) | ||||
| GN3503 | CN Vittoria, Adria | 2013 | in service (2019) | ||||
| GN3504 | CN Vittoria, Adria | 2013 | in service (2019) | ||||
| GN3505 | CN Vittoria, Adria | 2013 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 140 |
| Length, m | 35.0 |
| Breadth, m | 7.20 |
| Draught, m | |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V4000 M93 diesels |
| Power, h. p. | 8490 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | nav. radars |
| Complement |
Graphics

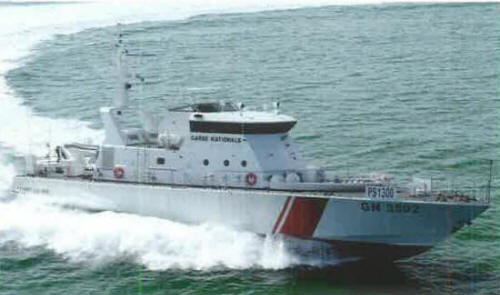

GN3502 2012
Project history
National Guard. Aluminium construction. Ordered in 2011.
Modernizations
None.
