V101 coastal patrol craft (1961-1963)
V105 1974
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
V101-108 |
CN de l'Esterel, France: V101-108 |
1961: V101, 102 1962: V103, 104 1963: V105, 106 1964: V107, 108 |
none |
none |
1971: V107, 108 in service (2019): V101-106 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 38 - 39 |
| Length, m | 25.0 |
| Breadth, m | 4.75 |
| Draught, m | 1.25 |
| No of shafts | 2 |
| Machinery | 2 General Motors 12V71 TI diesels |
| Power, h. p. | 940 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 900(16) |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | Decca 1226 radar |
| Complement | 11 |
Graphics

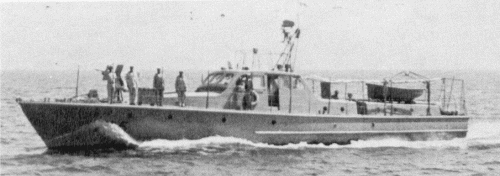

V105 1974

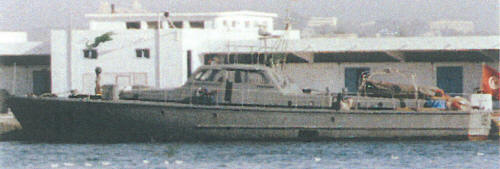

V106 1995
Project history
French 25m class patrol boats.
Modernizations
None.
