UTIQUE patrol boats (1994)
Kuriat 1995
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| عتيق [Utique] | P207 | China | 3/1994 | stricken 2018 | |||
| جربة [Jerba] | P208 | China | 3/1994 | in service (2019) | |||
| قرية [Kuriat] | P209 | China | 3/1994 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 120 |
| Length, m | 35.0 |
| Breadth, m | 5.40 |
| Draught, m | 1.80 |
| No of shafts | 4 |
| Machinery | 4 MWM TB604 BV12 diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(17) |
| Armament | 2 x 2 - 25/82 type 81 |
| Electronic equipment | type 756 radar |
| Complement | 39 |
Graphics

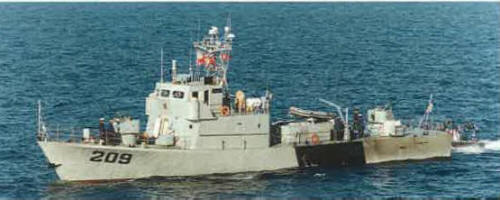

Kuriat 1995
Project history
Shortened Chinese type 062-I variant with larger superstructure and lighter armament.
Modernizations
None.
Naval service
No significant events.
