LA GALITE fast attack craft (missile) (1985)

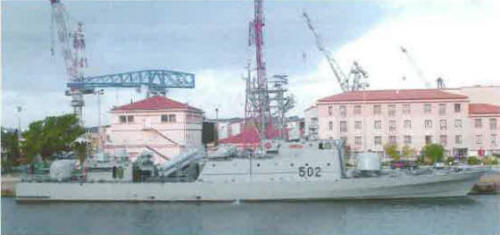

Tunis 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| لا غاليتي [La Galite] | P501 | CMN, Cherbourg, France | 26.5.1982 | 16.6.1983 | 27.2.1985 | in service (2019) | |
| تونس [Tunis] | P502 | CMN, Cherbourg, France | 28.9.1982 | 27.10.1983 | 28.3.1985 | in service (2019) | |
| كارثج [Carthage] | P503 | CMN, Cherbourg, France | 6.1.1983 | 24.1.1984 | 29.4.1985 | in service (2019) |
Technical data
| Displacement standard, t | 395 |
|---|---|
| Displacement full, t | 425 |
| Length, m | 53.0 pp 56.8 oa |
| Breadth, m | 8.16 |
| Draught, m | 2.15 hull 2.50 propellers |
| No of shafts | 4 |
| Machinery | 4 MTU 20V538 TB93 diesels |
| Power, h. p. | 19300 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2800(10) |
| Armament | 2 x 4 MM40 Exocet SSM (8 MM40), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda Bofors Compact Twin 40, 2 x 2 - 30/75 GCM-A03 |
| Electronic equipment | Triton S, Castor IIB radars, 2x Naja e/o systems, DR2000 ECM, Dagaie decoy RL, TAVITAC CCS |
| Complement | 35 |
Standard scale images
La Galite 1990
Graphics
Tunis 2009
Project history
French La Combattante III design.
Modernizations
None.
Naval service
No significant events.
