HANNIBAL patrol craft (1953-1954/1973-1977)

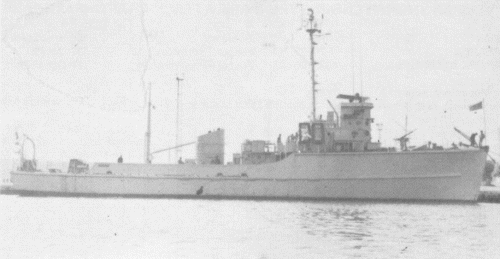

Hannibal 1974
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| هانيبال [Hannibal] (ex-Coquelicot) | Stephens Bros, Stockton, USA | 1952 | 1953 | 2.1954 // 6.1973 | discarded 1988 | ||
| سوس [Sousse] (ex-Marjolaine, ex-Aconit) | Harbor BB, Terminal Is, USA | 1952 | 1953 | 3.1953 // 7.1977 | discarded 1988 |
Technical data
| Displacement standard, t | 360 |
|---|---|
| Displacement full, t | 400 |
| Length, m | 42.1 wl 44.3 oa |
| Breadth, m | 8.10 |
| Draught, m | 2.10 |
| No of shafts | 2 |
| Machinery | 2 General Motors 8-268A diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 13 |
| Fuel, t | diesel oil 40 |
| Endurance, nm(kts) | 2500(10) |
| Armament | 1 x 2 - 20/70 Mk 24 |
| Electronic equipment | DRBN-31 radar |
| Complement | 38 |
Standard scale images
Hannibal 1975
Graphics
Hannibal 1974
Project history
Former French Adjutant class minesweepers. Minesweeping gear was removed during transfer, ships were used for fishery protection.
Modernizations
None.
Naval service
No significant events.
