HAMILCAR fast attack craft (missile) (1976-1977/2005)

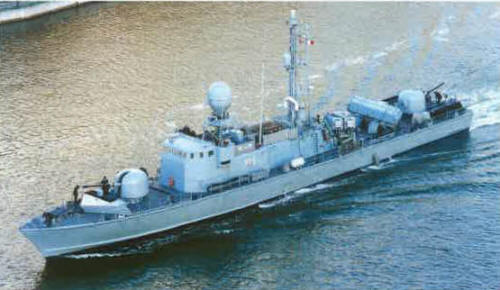

Hasdrubal 2005

Ships


Name No Yard No Builder Laid down Launched Comp Fate
حملكر [Hamilcar] (ex-Sperber, ex-S65) P505   Krögerwerft, Rendsburg, West Germany 18.1.1973 15.1.1974 27.9.1976 // 4.7.2005 in service (2019)
حنون [Hannon] (ex-Greif, ex-S66) P506   Lürssen, Vegesack, West Germany 12.12.1973 4.9.1975 25.11.1976 // 4.7.2005 stricken 2017
حملك [Himilcon] (ex-Geier, ex-S63) P507   Lürssen, Vegesack, West Germany 14.2.1973 18.9.1974 2.6.1976 // 29.9.2005 in service (2019)
هانيبال [Hannibal] (ex-Seeadler, ex-S68) P508   Lürssen, Vegesack, West Germany 12.6.1974 17.11.1975 28.3.1977 // 29.9.2005 in service (2019)
حاسدربل [Hasdrubal] (ex-Habicht, ex-S69) P509   Krögerwerft, Rendsburg, West Germany 25.1.1974 5.6.1975 23.12.1977 // 13.12.2005 in service (2019)
جزك [Giscon] (ex-Kormoran, ex-S70) P510   Lürssen, Vegesack, West Germany 26.11.1974 14.4.1976 29.7.1977 // 13.12.2005 in service (2019)


Technical data


Displacement standard, t

300
Displacement full, t

393
Length, m

54.4 pp 57.6 oa
Breadth, m

7.76
Draught, m

2.56 hull 2.82 propellers
No of shafts

4
Machinery

4 MTU 16V956 TB91 diesels
Power, h. p.

17950
Max speed, kts

38
Fuel, t

diesel oil 116
Endurance, nm(kts)2600(16)
Armament

2 x 2 MM38 Exocet SSM (4 MM38), 2 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 12.7/90, 2 - 533 TT (2 SST4)
Electronic equipment

3RM20, WM27 radars, OGR-713 e/o system, Cutlass, Scorpion ECM suites, Wolke, 2x Hot Dog/Silver Dog decoy RL, AGIS2000 CCS
Complement

40


Standard scale images


<i>La Galite </i>1990
La Galite 1990


Graphics


<i>Hasdrubal </i>2005
Hasdrubal 2005


Project history

Former Bundesmarine type 143B craft without Exocet missiles but canisters for them were retained.

Modernizations

None.

Naval service

No significant events.
