Trinity 1970

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Trinity	CG1		Vosper, Portsmouth, UK			2.1965	deleted 1986
Courland Bay	CG2		Vosper, Portsmouth, UK			2.1965	deleted 1986
Chaguaramas	CG3		Vosper, Portsmouth, UK			3.1972	deleted 1988
Bucco Reef	CG4		Vosper, Portsmouth, UK			3.1972	deleted 1992

Technical data

Displacement standard, t	CG1, 2: 96 CG3, 4: 100
Displacement full, t	CG1, 2: 123 CG3, 4: 125
Length, m	CG1, 2: 31.4 CG3, 4: 31.5
Breadth, m	5.90
Draught, m	CG1, 2: 1.70 CG3, 4: 1.80
No of shafts	2
Machinery	2 Paxman-Ventura YJCM diesels
Power, h. p.	2900
Max speed, kts	CG1, 2: 24.5 CG3, 4: 24
Fuel, t	CG1, 2: diesel oil 18 CG3, 4: diesel oil 20
Endurance, nm(kts)	CG1, 2: 1800(13.5) CG3, 4: 2000(13)
Armament	CG1, 2: 1 x 1 - 40/60 Mk 3 CG3, 4: 1 x 1 - 20/80 Mk 7 (HS404)
Electronic equipment	radar
Complement	CG1, 2: 17 CG3, 4: 19

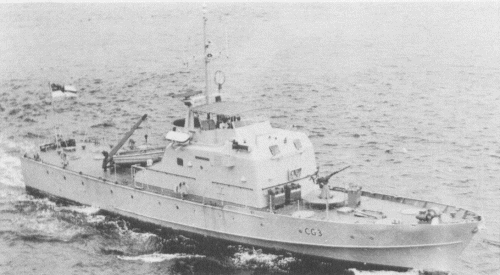

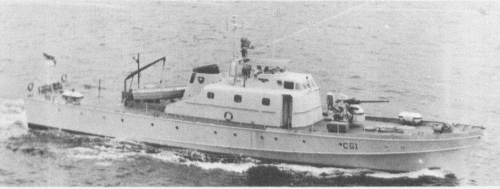

Graphics

Project history

Large patrol craft, all fitted with roll damping fins and were air conditioned.

Modernizations

None.
