SOLDADO patrol launches (1995)
Soldado 1995
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CG38 Soldado CG39 Roxborough CG40 Mayaro |
SeaArk, Monticello, USA: CG38-40 |
1995: CG38-40 |
none |
none |
late 2000s: CG38-40 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 15 |
| Length, m | 12.2 |
| Breadth, m | 3.86 |
| Draught, m | 0.70 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3208TA diesels |
| Power, h. p. | 690 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(18) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Raytheon R40 radar |
| Complement | 5 |
Graphics

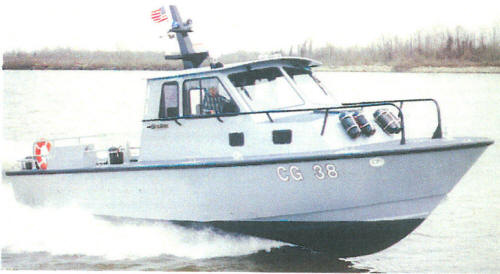

Soldado 1995
Project history
SeaArk 'Dauntless' type.
Modernizations
None.
