SEA DRAGON patrol launch (1980)
Sea Dragon 1980
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Sea Dragon, 6.1989- CG37 Carenage |
Watercraft, Shoreham, UK: Sea Dragon |
1980: Sea Dragon |
none |
none |
1999: CG37 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 15 |
| Length, m | 13.7 |
| Breadth, m | 4.10 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 8V92 diesels |
| Power, h. p. | 700 |
| Max speed, kts | 23.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 360(18) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Decca 110 radar |
| Complement | 4 |
Graphics

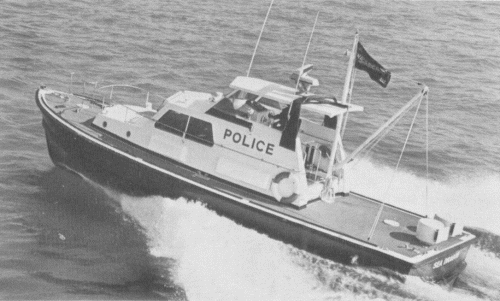

Sea Dragon 1980
Project history
Small patrol craft. Police, transferred to Coast Guard in 1989. GRP hull.
Modernizations
None.
