EL TUCUCHE patrol boat (1977)
El Tucuche 1975
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CG25 El Tucuche |
Tugs & Lighters, Port-of-Spain: CG25 |
1977: CG25 |
none |
none |
early 1990s: CG25 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 22 |
| Length, m | 16.7 |
| Breadth, m | 4.70 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 8V71 diesels |
| Power, h. p. | 600 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Decca 150 radar |
| Complement | 6 |
Graphics

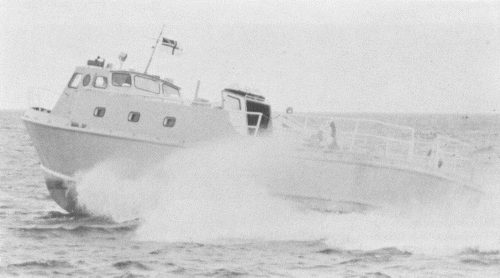

El Tucuche 1975
Project history
Small patrol craft.
Modernizations
None.
