BARRACUDA patrol craft (1980)
Cascadura 1994
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Barracuda | CG5 | Karlskronavarvet, Karlskrona, Sweden | 15.6.1980 | discarded 2005 | |||
| Cascadura | CG6 | Karlskronavarvet, Karlskrona, Sweden | 15.6.1980 | discarded 2015 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 210 |
| Length, m | 40.6 |
| Breadth, m | 6.70 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 Paxman Valenta 16RO200CM diesels |
| Power, h. p. | 8000 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2200(15) |
| Armament | 1 x 1 - 40/70 Bofors 315, 1 x 1 - 20/90 GAM-B01 |
| Electronic equipment | Decca TM1226 radar, e/o director |
| Complement | 22 |
Standard scale images

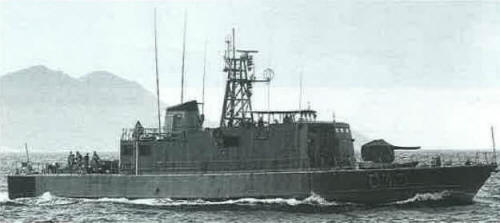

Barracuda 1980
Graphics
Cascadura 1994
Project history
Swedish CG40 type. Fitted with foam-cannon oil pollution equip,emt and for oceanographic and hydrographic work.
Modernizations
None.
Naval service
No significant events.
