FIGHTING SHIPS OF THE WORLD
TONGA
COASTAL FORCES
NEIAFU patrol boats (1989-1991)
Savea 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Neiafu | P201 | ASI, Jervis Bay, Australia | 30.1.1989 | 21.9.1989 | 28.10.1989 | in service (2020) | |
| Pangai | P202 | ASI, Jervis Bay, Australia | 2.10.1989 | 1990 | 30.6.1990 | in service (2020) | |
| Savea | P203 | ASI, Jervis Bay, Australia | 2/1990 | 1991 | 23.3.1991 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 165 |
| Length, m | 28.6 pp 31.5 oa |
| Breadth, m | 8.10 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516 diesels |
| Power, h. p. | 2820 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil 28 |
| Endurance, nm(kts) | 2500(12) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | Furuno 1011 radar |
| Complement | 17 |
Graphics

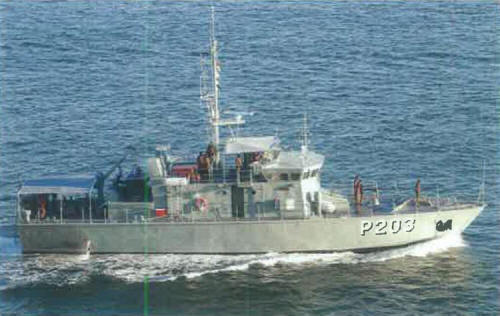

Savea 2013
Project history
ASI315, or 'Pacific Patrol Boat' design, built as grant-aid by Australia. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
