Sichang 2011

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
สีชัง [Sichang]	6, 1992- 721		ItalTahi, Bangkok		24.4.1987	8.1.1988	in service (2019)
สุรินทร์ [Surin]	7, 1992- 722		Naval DYd, Bangkok		12.4.1988	16.12.1988	in service (2019)

Technical data

Displacement standard, t	721: 3540
Displacement full, t	721: 4235 722: 4520
Length, m	721: 91.7 pp 103.0 oa 722: 109.0
Breadth, m	15.7
Draught, m	3.52
No of shafts	2
Machinery	2 MTU 20V1163 TB62 diesels
Power, h. p.	11000
Max speed, kts	16
Fuel, t	diesel oil
Endurance, nm(kts)	4000(14)
Armament	2 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90, 1 x 1 - 81/12 M29 mortar, helicopter deck
Military load	3 LCVP, 13 tanks, 6 3t vehicles, 350 troops
Electronic equipment	Decca 1226 radar, 2x Sea Archer Mk 1A mod. 2 e/o systems
Complement	129

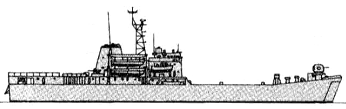

Standard scale images

Graphics

Project history

Built under license to the modified French PS700 (Normed 700) design with Korea-Tacoma technical assistance.

Modernizations

None.

Naval service

No significant events.
