MATTAPON utility landing craft (2010)

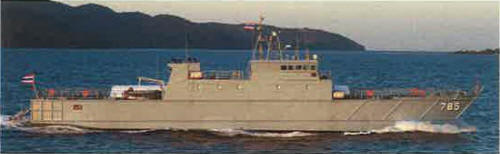

Rawi 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| มัตโพน [Mattapon] | 784 | Marsun, Bangkok | 8.12.2010 | in service (2019) | |||
| ราวี [Rawi] | 785 | Marsun, Bangkok | 8.12.2010 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 450 |
| Length, m | 55.0 |
| Breadth, m | 11.0 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 MAN D2842LE412 diesels |
| Power, h. p. | 1600 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
| Military load | 5 5t trucks |
| Electronic equipment | 2x nav. radars |
| Complement | 33 |
Standard scale images
Mattapon 2010
Graphics
Rawi 2011
Project history
Locally designed. Ordered in September 2008.
Modernizations
None.
Naval service
No significant events.
