KHAMRONSIN small corvettes (1992)

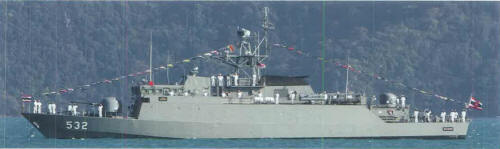

Thayanchon 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
คำรณสินธุ [Khamronsin] 1, 1992- 531   Italthai, Bangkok 15.3.1988 15.8.1989 29.7.1992 in service (2019)
ทะยานชล [Thayanchon] 2, 1992- 532   Italthai, Bangkok 20.4.1988 7.12.1989 5.9.1992 in service (2019)
ล่องลม [Longlom] 3, 1992- 533   Royal Thai N DY, Bangkok 15.3.1988 8.8.1989 2.10.1992 in service (2019)


Technical data


Displacement standard, t

450

Displacement full, t

630

Length, m

56.7 pp 62.0 oa

Breadth, m

8.26

Draught, m

2.50 hull

No of shafts

2

Machinery

2 MTU 20V1163 TB93 diesels

Power, h. p.

9980

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)

2500(15)

Armament

1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 30/70 OTO-Breda 563, 4 x 1 - 12.7/90, 2 x 3 - 324 PMW-49A TT (6 Stingray), 2 DCT, 1 DCR

Electronic equipment

Decca 1226, AWS-4 radars, Sea Archer 1A mod.2 e/o system, DSQS-21C sonar, Nautis-P CCS

Complement

57



Standard scale images


<i>Khamronsin </i>2000
Khamronsin 2000


Graphics


<i>Thayanchon </i>2007
Thayanchon 2007


Project history

Ordered 29.9.1987. Lengthened version of Vosper's Province class.

Modernizations

None.

Naval service

No significant events.
