T228 patrol boats (2013-2016)





Tor 230 2013

Ships


Names Builders Commissioned Losses Transfers Discarding

ต.228-230 [Tor 228-230]

ต.232-237 [Tor 232-237]

Marsun, Bangkok: Tor 228-230, 232-237

2013: Tor 228-230

2016: Tor 232-237

None

 None

in service (2019): Tor 228-230, 232-237


Technical data


Displacement standard, t
Displacement full, t

25
Length, m

21.4
Breadth, m

5.60
Draught, m

1.05
No of shafts2
Machinery

2 MAN D2862 LE463 diesels
Power, h. p.2760
Max speed, kts

30
Fuel, tdiesel oil
Endurance, nm(kts)350(30)
Armament

1 x 1 - 20/90 GAM-B01, 1 x 1 - 81/12 M29 mortar
Electronic equipment

nav. radar
Complement

9


Graphics

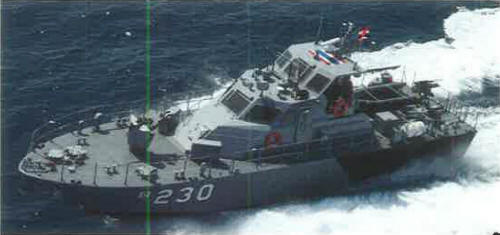

<i>Tor 230 </i> 2013
Tor 230 2013


Project history

Aluminium construction. T229 was damaged by a terrorist bomb in May 2014.

Modernizations

None.

Naval service

No significant events.
