RPC type patrol launches (1967)
L21 1976
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ล.21-26 [L21-26] |
Birchfield SB, Tacoma, USA: L21-26 |
12/1968: L21-26 |
None |
None | 1970s: 2 boats 1990s: 4 boats |
Technical data
| Displacement standard, t | 10 |
|---|---|
| Displacement full, t | 13 |
| Length, m | 10.9 |
| Breadth, m | 3.25 |
| Draught, m | 1.14 |
| No of shafts | 2 |
| Machinery | 2 Gray diesels |
| Power, h. p. | 450 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90, 1 x 2 - 7.6/90 |
| Military load | 12 troops |
| Electronic equipment | none |
| Complement | 6 |
Graphics

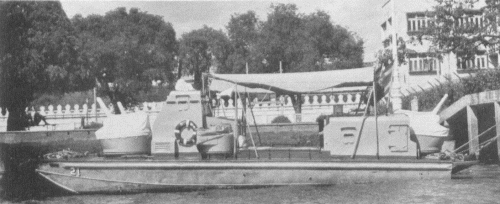

L21 1976
Project history
US RPC type for Mekong.
Modernizations
None.
Naval service
No significant events.
