RATCHARIT fast attack craft (missile) (1979-1980)

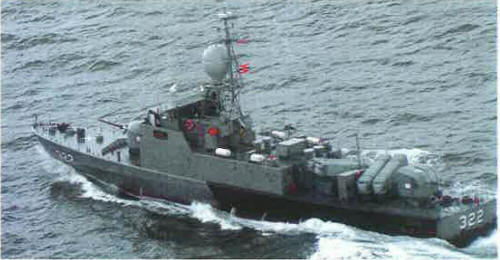

Witthayakhom 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ราชฤทธิ์ [Ratcharit] | 4, 1992- 321 | Breda, Venice, Italy | 30.7.1978 | 10.8.1979 | in service (2019) | ||
| วิทยาคม [Witthayaakhom] | 5, 1992- 322 | Breda, Venice, Italy | 2.9.1978 | 12.11.1979 | in service (2019) | ||
| อุดมเดช [Udomdet] | 6, 1992- 323 | Breda, Venice, Italy | 28.9.1978 | 21.2.1980 | in service (2019) |
Technical data
| Displacement standard, t | 235 |
|---|---|
| Displacement full, t | 270 |
| Length, m | 47.3 pp 49.8 oa |
| Breadth, m | 7.50 |
| Draught, m | 2.30 |
| No of shafts | 3 |
| Machinery | 3 MTU MD20V538 TB91 diesels |
| Power, h. p. | 11500 |
| Max speed, kts | 37 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(15) |
| Armament | 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 1226, WM-25 radars, RDL-2 ECM suite |
| Complement | 41 |
Graphics
Witthayakhom 2007
Project history
Ordered 23.7.1976. Bred'a MV250 type.
Modernizations
None.
Naval service
No significant events.
