PBR Mk2 type patrol launches (1966-1973)
L116 1996
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ล.11-19 [L11-19] ล.110-145 [L110-145] |
United BB, Bellingham, USA: L11-19, 110-145 | 1966-1967: L11-19, 110-120 1972: L121-130 1973: L131-145 |
None |
None |
1980s: 8 boats 1990s: 24 boats in service (2019): 13 boats, inc. L118, 131, 137-141 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 9 |
| Length, m | 9.73 |
| Breadth, m | 3.53 |
| Draught, m | 0.81 |
| No of shafts | 2 Jacuzzi water jets |
| Machinery | 2 General Motors 6V53N diesels |
| Power, h. p. | 420 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 150(23) |
| Armament | 1 x 2 - 12.7/90, 1 x 1 - 12.7/90, 1 x 1 - 60/11 mortar |
| Electronic equipment | Raytheon 1900 (SPS-66) radar |
| Complement | 4 |
Graphics

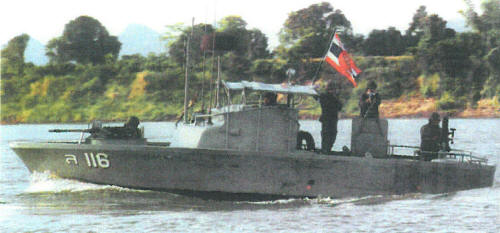

L116 1996
Project history
US PBR Mk II type for Mekong.
Modernizations
None.
Naval service
No significant events.
