TANZANIA
COASTAL FORCES
NGUNGURI patrol boats (1988-1993/2005)
Mamba 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Ngunguri (ex-Vincent) | PB19 | Babcock, Rosyth, UK | 12.1993 // 9.2005 | in service (2020) | |||
| Mamba (ex-Vigilant) | PB20, 2012- KM205 | Fairey Marine, Cowes, UK | 6.12.1988 // 9.2005 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 100 |
| Length, m | 22.8 pp 25.7 oa |
| Breadth, m | 6.20 |
| Draught, m | 1.70 |
| No of shafts | 2 + 1 waterjet |
| Machinery | 2 Paxman 12SET-CWN diesels + 1 Perkins T6-3544 diesel |
| Power, h. p. | 2880 + 200 = 3080 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | 2x Decca radars |
| Complement | 11 |
Graphics

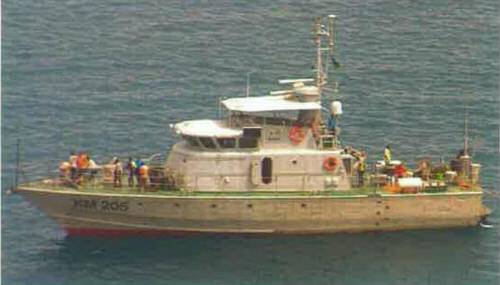

Mamba 2013
Project history
British 'Protector' class, purchased from British Customs and Marine Excise Branch.
Modernizations
None.
Naval service
No significant events.
