TAI HO frigates (1943-1944/1949)





Tai Ho as rearmed

Ships


Name No Yard No Builder Laid down Launched Comm Fate
太和 [Tai Ho] (ex-Thomas) DE23   Dravo, Wilmington, USA 1.1943 31.7.1943 11/1943 // 2.1949 deleted 1972
太湖 [Tai Hu] (ex-Breeman) DE24   Dravo, Wilmington, USA 3.1943 4.9.1943 12/1943 // 2.1949 deleted 1975
太仓 [Tai Tsang] (ex-Bostwick) DE25   Dravo, Wilmington, USA 2.1943 30.8.1943 12/1943 // 2.1949 deleted 1973
太昭 [Tai Chao] (ex-Carter) DE26   Dravo, Wilmington, USA 11.1943 29.2.1944 5/1944 // 2.1949 deleted 1973


Technical data


Displacement standard, t

1253

Displacement full, t

1602

Length, m

91.4 wl 93.3 oa

Breadth, m

11.2

Draught, m

3.20 full load

No of shafts

2

Machinery

4 General Motors diesel-generators, 2 electric motors

Power, h. p.

6000

Max speed, kts

21

Fuel, t

diesel oil 320

Endurance, nm(kts)11500 (11)
Armament

4 x 1 - 76/50 Mk 22, 2 x 2 - 40/60 Mk 1, 11 x 1 - 20/70 Mk 10, 8 DCT, 2 DCR (120)

Electronic equipment

SC, SF or SL or SU radars, QGA sonar

Complement

186



Standard scale images

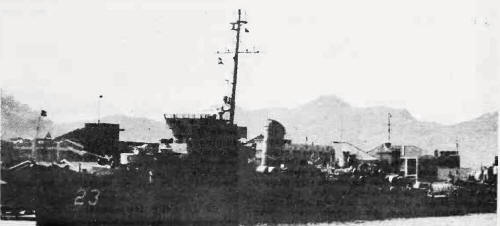

<i>Tai Chao</i> 1965
Tai Chao 1965


Graphics

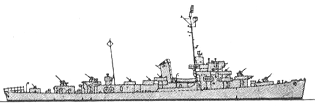

<i>Tai Ho </i>as rearmed
Tai Ho as rearmed


Project history

Former USN DET (Cannon) class destroyer escorts. In 1949 all four ships escaped to Taiwan. Armament was strengthened before commission.

Modernizations

1960s, all: - 4 x 1 - 76/50, 7 x 1 - 20/70, 8 DCT; + 2 x 1 - 127/38 Mk 30, 4 x 1 - 40/60 Mk 3, 2 x 3 - 324 TT, 1 x 24 - 178 Hedgehog Mk 11 ASWRL

Naval service

No significant events.
