PP3501 patrol boats (1980s-2000)

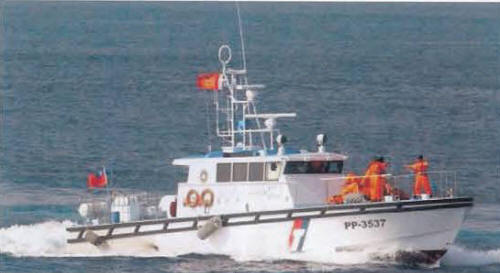

PP3537 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
1st series: PP3501-3503 PP3505-3513 PP3516-3523 PP3525-3532 2nd series: PP3535-3539 PP3550 PP3552, 3553 PP3555-3563 PP3565-3568 PP3572 PP3576 PP3580 |
Lung-The SB, Dong-Shan: PP3501-3503, 3505-3513, 3516-3523, 3525-3532, 3535-3539, 3550, 3552, 3553, 3555-3563, 3565-3568, 3572, 3576, 3580 |
1980s-1990s: PP3501-3503, 3505-3513, 3516-3523, 3525-3532 2000: PP3535-3539, 3550, 3552, 3553, 3555-3563, 3565-3568, 3572, 3576, 3580 |
none |
none |
2000s: PP3501-3503, 3505-3513, 3523, 3526, 3528, 3529, 3531, 3532 2010s: PP3516-3522, 3525, 3527, 3530 in service (2019): PP3535-3539, 3550, 3552, 3553, 3555-3563, 3565-3568, 3572, 3576, 3580 |
Technical data
| Displacement standard, t | 33 |
|---|---|
| Displacement full, t | 35 |
| Length, m | 21.0 |
| Breadth, m | 5.00 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V183 diesels |
| Power, h. p. | 2300 |
| Max speed, kts | 1st series: 28 2nd series: 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(22) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 8 |
Graphics
PP3537 2008
Project history
GRP hull.
Modernizations
None.
Naval service
No significant events.
