AL ASSARI light frigates (1968/1975)
Al Hirasa 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| الحراسة [Al Hirasa] (ex-СКР-95 [SKR-95]) | 11, 2.1976- 1-508 | 39 | Khabarovsk SYd, USSR | 10.3.1967 | 15.5.1968 | 27.9.1968 // 5.1975 | sunk as target 3.2018 |
| الساري [Al Assari] (ex-СКР-94 [SKR-94]) | 12, 2.1976- 2-508 | 40 | Khabarovsk SYd, USSR | 1967 | 1968 | 31.10.1968 // 12.1975 | sunk as target 15.4.2018 |
Technical data
| Displacement standard, t | 1000 |
|---|---|
| Displacement full, t | 1160 |
| Length, m | 82.3 |
| Breadth, m | 9.20 |
| Draught, m | 2.93 mean 5.96 max |
| No of shafts | 3 |
| Machinery | CODAG, 2 M-2BE gas turbines + 1 61B-2 diesel |
| Power, h. p. | 29400 (24000+5400) |
| Max speed, kts | 29 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 1800(14) |
| Armament | 2 x 2 - 76/59 AK-726, 1 x 3 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 DCR, 22 mines |
| Electronic equipment | Fut-N, Fut-B, Don radars, MG-312IE Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite |
| Complement | 106 |
Standard scale images
Al Assari 1970
Graphics

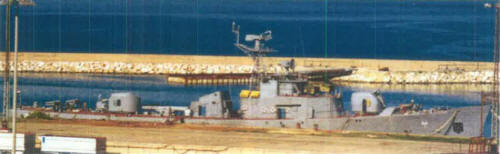

Al Hirasa 2001
Project history
Soviet export project 159AE.
Modernizations
None.
Naval service
No significant events.
