AKBA BEN NASEH submarine chasers (1940-1946/1949)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| أكبا بن نسه [Akba Ben Naseh] (ex-Bayonne, ex-Ch10) | F C de la Méditerranée, Le Havre, France | 1938 | 1940 | 1940 // 1949 | stricken 1984 | ||
| ترك بن سيد [Tarek Ben Said] (ex-Calais, ex-Ch13) | A C de la Seine-Maritime, Le Trait, France | 1938 | 1940 | 1940 // 1949 | stricken 1984 | ||
| أبدوله إبن أرسي [Abdullah Ibn Arissi] (ex-Ch19) | F C de la Méditerranée, Le Havre, France | 1939 | 1941 | 1946 // 1949 | stricken 1984 |
Technical data
| Displacement standard, t | 107 |
|---|---|
| Displacement full, t | 137 |
| Length, m | 35.5 pp 37.1 oa |
| Breadth, m | 5.66 |
| Draught, m | 1.95 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | 1130 |
| Max speed, kts | 15.5 |
| Fuel, t | diesel oil 5.5 |
| Endurance, nm(kts) | 1200(8) |
| Armament | 2 x 1 - 20/70 Mk 4, 4 DCT, 1 DCR (20) |
| Electronic equipment | none |
| Complement | 28 |
Standard scale images

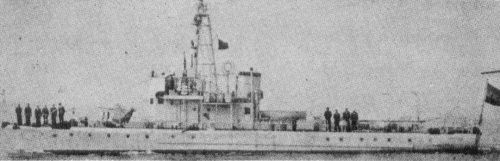

Akba Ben Naseh 1950
Graphics
Project history
Former French Ch5 class submarine chasers, transferred in 1949 to form the nucleus of the Syrian Navy.
Modernizations
1955-1956, all: were rebuilt, funnels were removed.
Naval service
No significant events.
