FIGHTING SHIPS OF THE WORLD
SYRIA
COASTAL FORCES
1-8 patrol boats (1981-1985)





5-8 1998

Ships


Names Builders Commissioned Losses Transfers Discarding

1-8

2-8

3-8

4-8

5-8

6-8

7-8

8-8

More, Feodosiya, USSR: 1-8, 2-8, 3-8, 4-8, 5-8, 6-8, 7-8, 8-8

1981: 1-8, 2-8, 3-8

1984: 4-8, 5-8, 6-8

1985: 7-8, 8-8

none

none

in service (2020): 1-8, 2-8, 3-8, 4-8, 5-8, 6-8, 7-8, 8-8


Technical data


Displacement standard, t

37
Displacement full, t

40
Length, m

23.8
Breadth, m

5.15
Draught, m

1.00
No of shafts

2
Machinery

2 M-401BT diesels
Power, h. p.

2000
Max speed, kts

29
Fuel, t

diesel oil
Endurance, nm(kts)

450(13)
Armament

2 x 2 - 12.7/79
Electronic equipment

Lotsiya or Liman radar
Complement

9


Standard scale images


<i>1-8 </i>1985
1-8 1985


Graphics

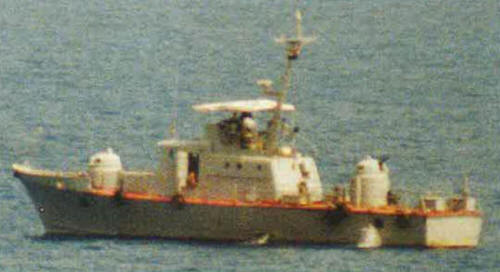

<i>5-8 </i>1998
5-8 1998


Project history

Soviet export project 1400ME.

Modernizations

None.

Naval service

No significant events.
