M3 inshore minesweepers (1940-1941)

HOME

FIGHTING SHIPS OF THE WORLD

SWEDEN

MINE WARFARE SHIPS

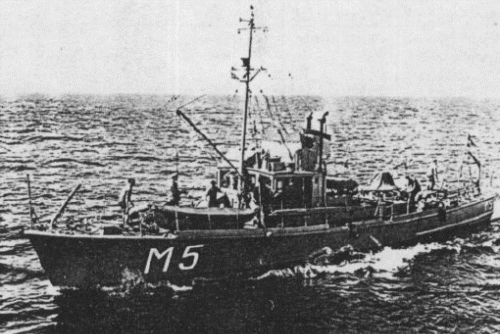

M5 1950

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
M3 - 14	Marstrand Varv: M3, 4 Motala, Norrköping: M5, 6 Tore Holm Varv: M7, 8 Fisksätra Varv, Stockholm: M9, 10 Larssons, Kristinehamn: M11, 12 Ystad Varv: M13 Valdemarsvik Varv: M14	9-12/1940: M3 - 5, 7, 9, 11 1-11/1941: M6, 8, 10, 12 - 14	no	no	3-12/1955: M3 - 6 11/1957: M11, 12 2-12/1959: M7, 8, 13, 14 1-11/1960: M9, 10

Names

Builders

Commissioned

Losses

Transfers

Discarding

M3 - 14

Marstrand Varv: M3, 4

Motala, Norrköping: M5, 6

Tore Holm Varv: M7, 8

Fisksätra Varv, Stockholm: M9, 10

Larssons, Kristinehamn: M11, 12

Ystad Varv: M13

Valdemarsvik Varv: M14

9-12/1940: M3 - 5, 7, 9, 11

1-11/1941: M6, 8, 10, 12 - 14

3-12/1955: M3 - 6

11/1957: M11, 12

2-12/1959: M7, 8, 13, 14

1-11/1960: M9, 10

Technical data

Displacement standard, t	50
Displacement full, t	?
Length, m	25.0
Breadth, m	5.10
Draught, m	1.40
No of shafts	2
Machinery	2 Scania or 2 Ellwe or 2 Bolinder diesels
Power, h. p.	400
Max speed, kts	13
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 20/63 K/66 M40, mechanical minesweeping gear
Complement

Graphics

M5 1950

Project history

Harbour minesweepers with mahogany hulls. Simplified variant of М1 class adapted for mass production. They were built on various small yards. Series was laid down in 1939-1940 and completed in 1940-1941.

Modernizations

none.

Naval service

no significant events.
