FÄLLAREN mine transports (1940-1941)





Fällaren 1987

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Fällaren A236         1941 stricken 1991
Minören A237         1940 stricken 1997


Technical data


Displacement standard, t
Displacement full, t170
Length, m31.8
Breadth, m6.20
Draught, m2.20
No of shafts1
Machinery2 diesels
Power, h. p.240
Max speed, kts

9

Fuel, tdiesel oil
Endurance, nm(kts)
Armament

mines

Complement


Graphics

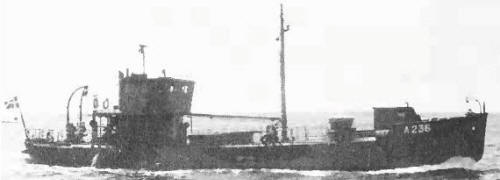

<i>Fällaren</i> 1987
Fällaren 1987


Project history

Mine transports with minelaying capability. Mahogany hulls.

Modernizations

1980s, both: + Terma Scanter 009 radar

Naval service

No significant events.
