CARLSKRONA minelayer (1982)

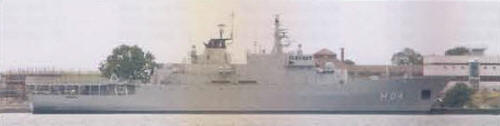

Carlskrona 2008 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Carlskrona (ex-Karlskrona) M04, 2010- P04 390 Karlskronavarvet, Karlskrona 1979 28.5.1980 19.3.1982 command ship 2009, in service (2019)


Technical data


Displacement standard, t

3130

Displacement full, t

3300

Length, m

97.5 pp 105.7 oa

Breadth, m

15.2

Draught, m

4.00

No of shafts

2

Machinery

4 Nohab-Polar F212-D825 diesels

Power, h. p.

10560

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 57/70 SAK57 Mk 1, 2 x 1 - 40/70 Bofors SAK40/48 (315), 105 mines, helicopter deck

Electronic equipment

Scanter 009, Raytheon nav., Saturn, 2x 9LV200 Mk 2 radars, SQ-3D/SF sonar, AR-700 ECM suite, 2x Philax decoy RL

Complement

118 + 182



Standard scale images


<i>Carlskrona</i> 2000
Carlskrona 2000


Graphics


<i>Carlskrona</i> 2008 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Carlskrona 2008 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Also used as cadet training ship for the annual cruise with 136 cadets and 46 instructors onboard. There were two CIC, one for Hugin and one for Spica II class FAC.

Modernizations

1980s: - Saturn radar; + Sea Giraffe 50HC radar

2009: - SQ-3D/SF sonar; + 9 GR600 radar

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
